TECHNOLOGIES

Single Shaft kilns

C.B.K. CENTRAL BURNER

TECHNOLOGICAL NOTES

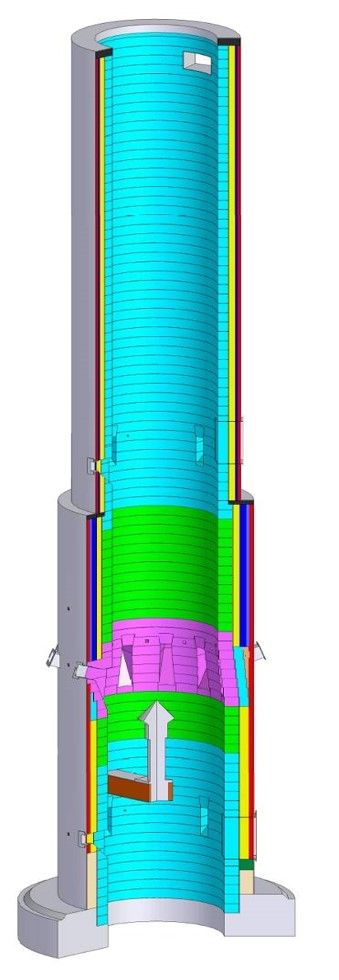

Our kilns of the C.B.K. series are of the single shaft type, with a round cross-section and counter-current gas circulation.
They are equipped with burners outside the liner and a central burner immersed in the material.
They enable the production of a wide range of different types of lime using gas as fuel.

WINNING FEATURES

  • Small to medium lime production
  • Low maintenance cost
  • Simplicity of management (no dedicated personnel required)
  • High CO2 concentration at the stack
  • Low investment cost

TECHNICAL DATA SHEET

Limestone size 30 ÷ 120 mm
Productione 30 ÷ 150 Tonn CaO/D
Fuel gas
Reactivity T60 ≤ 2,0 min (medium reactivity)
≤ 10 min (low reactivity)
Electricity Consumption < 10,5 kWh/Tonn CaO
Calorific Consumption < 950 Kcal / Kg. CaO
L.O.I. < 1,5
