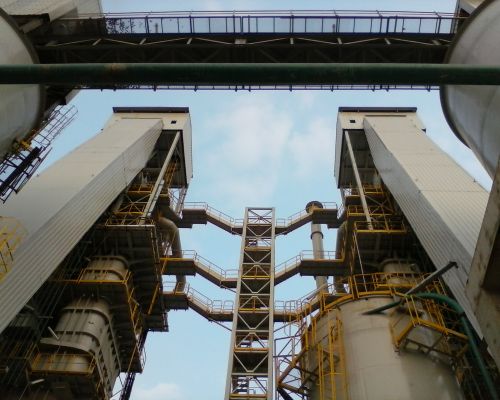

Double Shaft Kilns

D.S.S DOUBLE SHAFT SQUARE

TECHNOLOGICAL NOTES

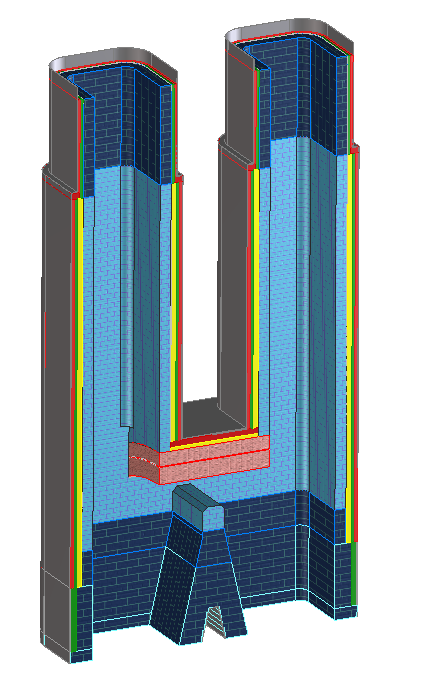

Our D.S.S. kilns are of the double shaft type, with a rectangular cross-section and equicurrent gas circulation.

The fuel is injected by means of two sets of lances that plunge from the top of the kiln into the limestone.

Combustion takes place in alternating cycles in the two kilns.

The particularly favourable conditions of thermal exchange between the combustion fumes and the limestone being decarbonated inside the shaft allow very low fuel consumption and high reactivity of the lime produced.

WINNING FEATURES

  • Low fuel consumption
  • High production stability
  • Very reactive lime
  • Low L.O.I. value
  • Medium to high lime production
  • Possibility of using different fuels

TECHNICAL DATA SHEET

Limestone size 30 ÷ 180 mm
Production 100 ÷ 400 Tonn CaO/D
Fuel gas / fuel oil / pulverized
Reactivity T60 ≤ 1,0 min (high reactivity)
≤ 2,5 min (medium reactivity)
Electrical Consumption 30 ÷ 35 kWh / Tonn CaO
Caloric Consumption < 850 Kcal / Kg. CaO
L.O.I. < 1,5 %
